The HP LaserJet 1010, 1020, M1005, and 2900 printers rely on the paper pickup assembly to feed paper smoothly from the tray into the printer. This assembly includes the pickup roller, separation pads, and sensors, which, if worn out, can cause paper jams, misfeeds, or multiple sheet pickups. Regular cleaning with isopropyl alcohol can resolve minor issues, but replacement is required when problems persist. Compatible and genuine HP spare parts ensure reliable performance, while caution is needed when considering Canon LBP 2900 parts for compatibility. Proper maintenance, such as using clean paper, regular cleaning, and correct storage, helps extend the life of the pickup assembly and the printer.

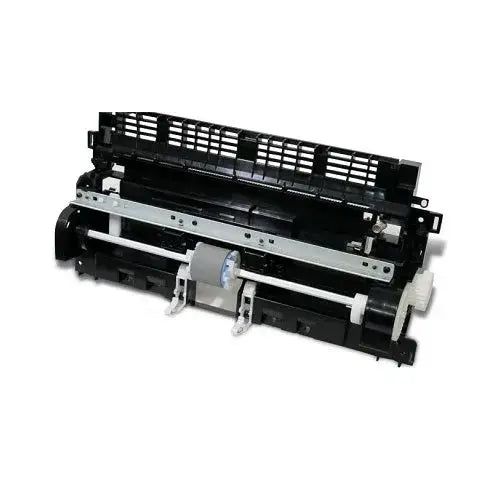

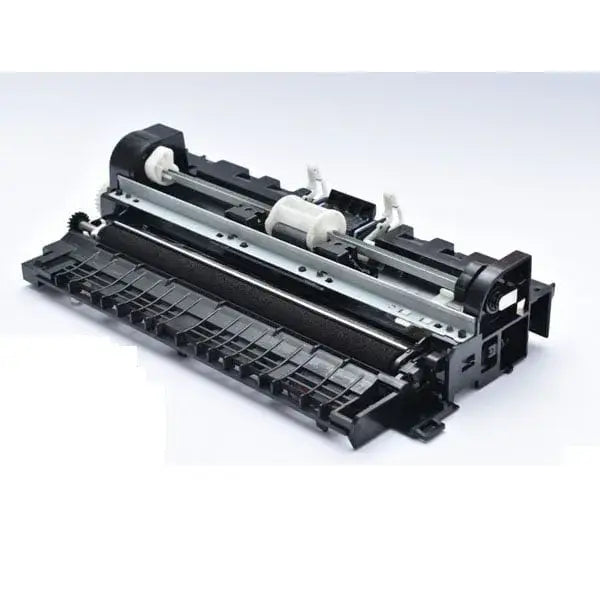

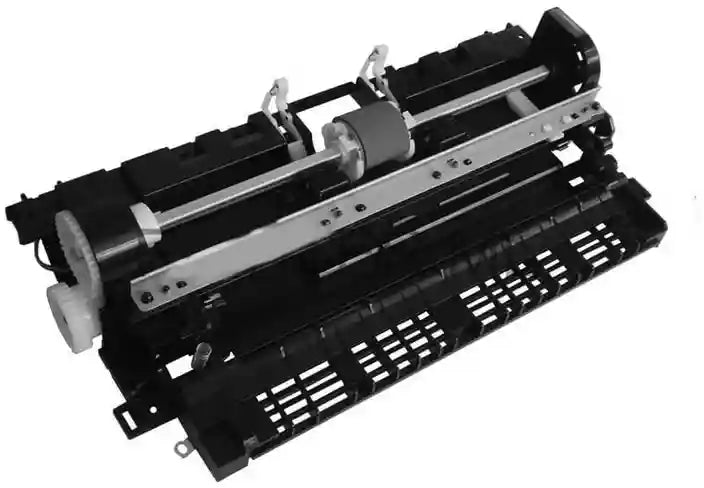

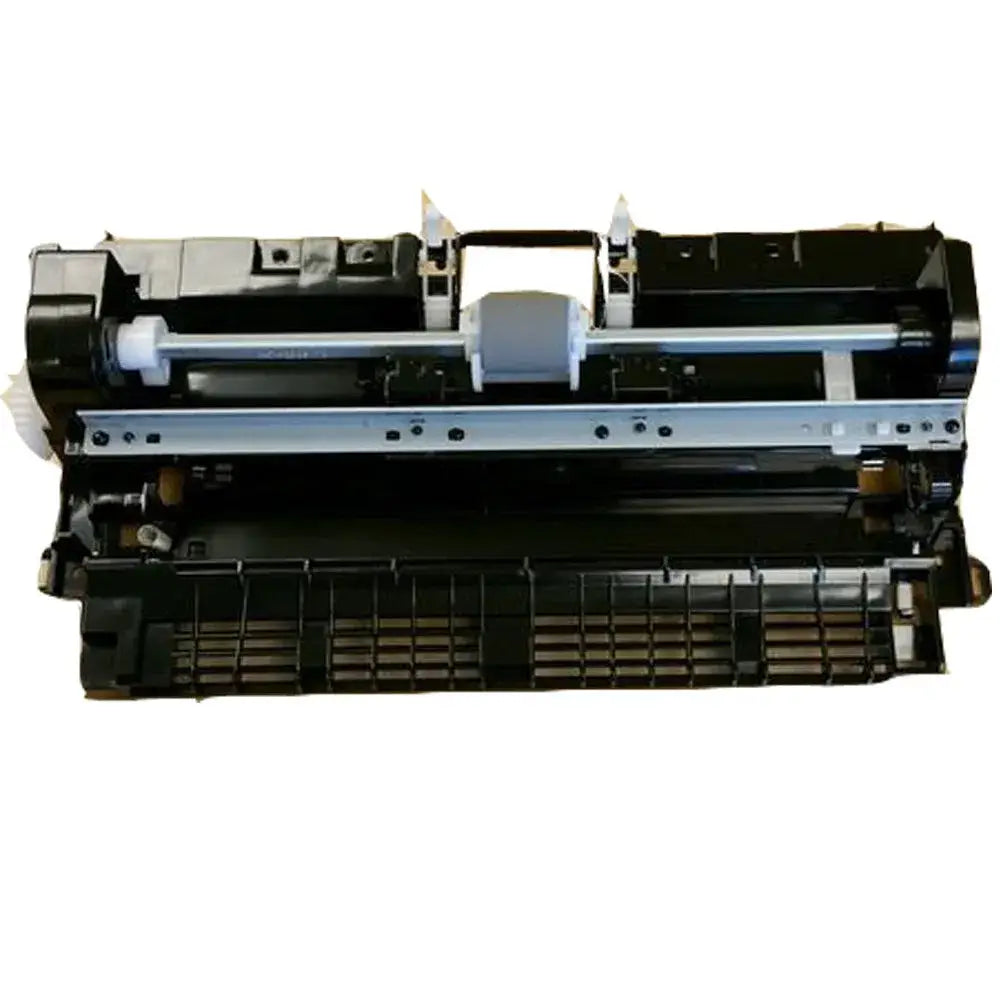

HP LaserJet 1010 1020 M1005 2900 Paper Pickup Assembly
The HP LaserJet 1010, 1020, M1005, and 2900 series printers are known for their reliability, but like all mechanical devices, they require maintenance and occasional part replacements. One critical component is the paper pickup assembly, which ensures the printer properly feeds paper during operation. This article will cover the importance and function of the paper pickup assembly in these HP LaserJet models, focusing on troubleshooting and part replacement in Mumbai.
Understanding HP LaserJet Printers
HP LaserJet printers are a staple in homes and offices globally, known for their quality and efficiency. The HP LaserJet series, including the 1010, 1020, M1005, and 2900, utilizes laser technology to produce sharp, professional documents. The heart of these machines lies in their intricate interaction between laser, toner, and the precise paper handling mechanism. The paper pickup assembly is integral to maintaining smooth, jam-free operation in the laser printer.
Overview of HP LaserJet Models
The following HP LaserJet models are reliable monochrome laser printers:
| Model | Characteristics |
|---|---|
| HP 1010, HP 1020 | Compact, suited for personal use |
| HP LaserJet M1005 | Multifunction (print, scan, copy) |
The LBP 2900, often associated with Canon LBP series, is known for its robust performance in small office environments. Understanding these HP LaserJet models helps diagnose issues related to their specific pickup assembly.
Key Features of the HP 1020 and M1005
The HP 1020 and HP LaserJet M1005 are popular for their ease of use and compact design. A key feature shared between these HP LaserJet models is their reliance on a robust paper pickup roller mechanism for consistent paper feeding. Any fault in this assembly impacts the printer's performance.
| Model | Key Features |
|---|---|
| HP 1020 | Crisp, clean prints, ideal for text-heavy documents. |
| HP LaserJet M1005 | Scanning and copying functionality, versatile for small offices. |
Importance of Paper Pickup in Printers
The paper pickup assembly is a vital part of any laser printer, including the HP LaserJet 1010, 1020, M1005, and the Canon LBP 2900. The paper pickup assembly's primary function is to accurately feed paper from the paper tray into the printer for imaging. A malfunctioning paper pickup roller or assembly can lead to paper jams, multiple sheets being pulled at once, or the printer not recognizing the paper at all. Maintaining the paper pickup unit ensures smooth, uninterrupted printing.
Components of the Paper Pickup Assembly
Parts of the Pickup Assembly for HP LaserJet
The paper pickup assembly for HP LaserJet models like the 1010, 1020, M1005, and 2900 consists of several key parts. These parts play a crucial role in ensuring the printer accurately picks up and feeds paper.
| Part | Function |
|---|---|
| Pickup Roller | Essential for grabbing the top sheet of paper. |
| Separation Pads | Prevents multiple sheets from feeding at once. |
A failure in any one of these parts can cause issues with paper feeding and may require replacement.
The Role of the Pickup Roller
The pickup roller is the primary component responsible for grabbing the paper from the paper tray. In HP LaserJet printers like the 1020 and M1005, the pickup roller is designed to provide consistent friction against the top sheet of paper. Over time, the roller can wear down, becoming smooth and losing its ability to effectively grip the paper. This often leads to paper jams and misfeeds, indicating a need for pickup roller replacement.
Assembly Sensor Functionality
The pickup assembly sensor for HP LaserJet printers is designed to detect the presence and movement of paper as it is being fed into the printer. The HP 1020 M1005 models rely on these sensors to ensure that only one sheet of paper is fed at a time. If the assembly sensor malfunctions, it can result in the printer not recognizing the paper, or it may cause multiple sheets to be pulled in simultaneously, creating a paper jam.
Common Issues with Paper Pickup Assemblies
Identifying Paper Jams and Misfeeds
Paper jams and misfeeds are common indicators of a faulty paper pickup assembly in HP LaserJet printers. These issues typically manifest as the printer stopping mid-print with a paper jam error, or the printer feeding multiple sheets of paper at once. Identifying the frequency and nature of these paper handling problems is the first step in diagnosing whether the HP pickup assembly requires attention or replacement.
Troubleshooting Pickup Assembly Problems
Troubleshooting pickup assembly problems in HP LaserJet printers such as the 1010, 1020, and M1005 often involves a visual inspection of the pickup roller and related components. Check for wear, cracks, or debris on the roller surface. Cleaning the pickup roller with a lint-free cloth and isopropyl alcohol can sometimes resolve minor issues. If problems persist, consider replacing the pickup assembly with a compatible HP spare part.
When to Replace the Pickup Assembly
Replacement of the paper pickup assembly is necessary when troubleshooting and cleaning no longer resolve paper feed issues. If the printer consistently experiences paper jams, misfeeds, or fails to pick up paper despite cleaning the pickup roller, it's time to replace the entire unit. Using compatible printer parts from a reliable source in Mumbai ensures optimal performance and longevity of your HP laser printer.
Repair and Replacement Options
Finding Spare Parts for HP LaserJet 1020 and M1005
Locating spare HP printer parts for models such as the HP LaserJet 1020 and M1005 in Mumbai requires identifying reputable suppliers. Many vendors specialize in HP laser printer parts, providing both new and refurbished options. When sourcing a paper pickup assembly, verify its compatibility with your specific HP LaserJet model, such as the 1020 M1005, to ensure proper function. Consider the vendor's return policy and warranty when buying a HP pickup roller or any HP LaserJet part.
Steps to Replace the Paper Pickup Assembly
Replacing the paper pickup assembly in HP LaserJet models like the HP 1020 M1005 involves a few key steps. First, power off the printer and disconnect it from the power source. Open the printer and locate the paper pickup assembly. Carefully remove the old pickup unit by disengaging any retaining clips or screws. Install the new HP paper pickup assembly, ensuring it is properly seated and secured. Test the printer with paper to confirm proper feeding.
Using Canon Parts in HP Printers
While using Canon parts in HP LaserJet printers is generally not recommended, certain Canon LBP series printers like the LBP 2900 share some component similarities with HP models. However, it is crucial to verify compatibility before attempting to use a Canon LBP 2900b paper pickup assembly in an HP 1020 or M1005. Always prioritize using HP printer parts specifically designed for your HP laser printer to avoid potential malfunctions or damage to the laser printer.
Tips for Maintaining Your HP LaserJet Printer
Regular Maintenance Practices
Regular maintenance is crucial for extending the life of your HP LaserJet printer, whether it’s the 1010, 1020, M1005, or 2900. Routine cleaning of the HP laser printer's internal components, including the paper pickup assembly, can prevent paper jams and misfeeds. Use a dry, lint-free cloth to wipe down the pickup roller and surrounding areas. Also, ensure that the correct type of paper is used, as specified in the HP LaserJet printer manual to ensure optimal performance.
How to Extend the Life of the Paper Pickup Assembly
To extend the lifespan of the paper pickup assembly in your HP 1020 M1005 printer, avoid using excessively dusty or abrasive paper. Regularly clean the pickup roller with a slightly damp, lint-free cloth to remove any accumulated dust or debris. Store paper in a dry, clean environment to prevent it from becoming damp or wrinkled, which can cause increased wear on the HP paper pickup assembly. Also, ensure the printer is placed on a stable surface to reduce vibrations that can affect the paper feed mechanism.
Best Practices for Printer Care
Implementing best practices for HP printer care can significantly improve its reliability and longevity. Always use high-quality toner cartridges recommended by HP for your specific laser printer model. Regularly inspect and clean the printer's interior, including the fuser assembly, to prevent buildup that can affect print quality. Keep the HP LaserJet printer in a well-ventilated area and avoid exposing it to extreme temperatures or humidity. Following these practices will help maintain the printer's performance and minimize the need for frequent parts replacement.
